Object Record / FI-CL-PART-002
120 mm Flex-Bay 4× HDD Cage with Fan
used white powder-coated cage with installed black fan and vibration grommets / dust and handling marks visible / two previously reported damaged screws require location and close documentation / physical cage and four-drive layout documented / fan model, hardware completeness, screw damage, fitment, and function pending
Narrative record
Evidence, relevance, and unresolved state.
Provenance
Custody record
Logged 2026-06-20 / quantity 1. 3 source asset references registered.
Identification notes
What is known

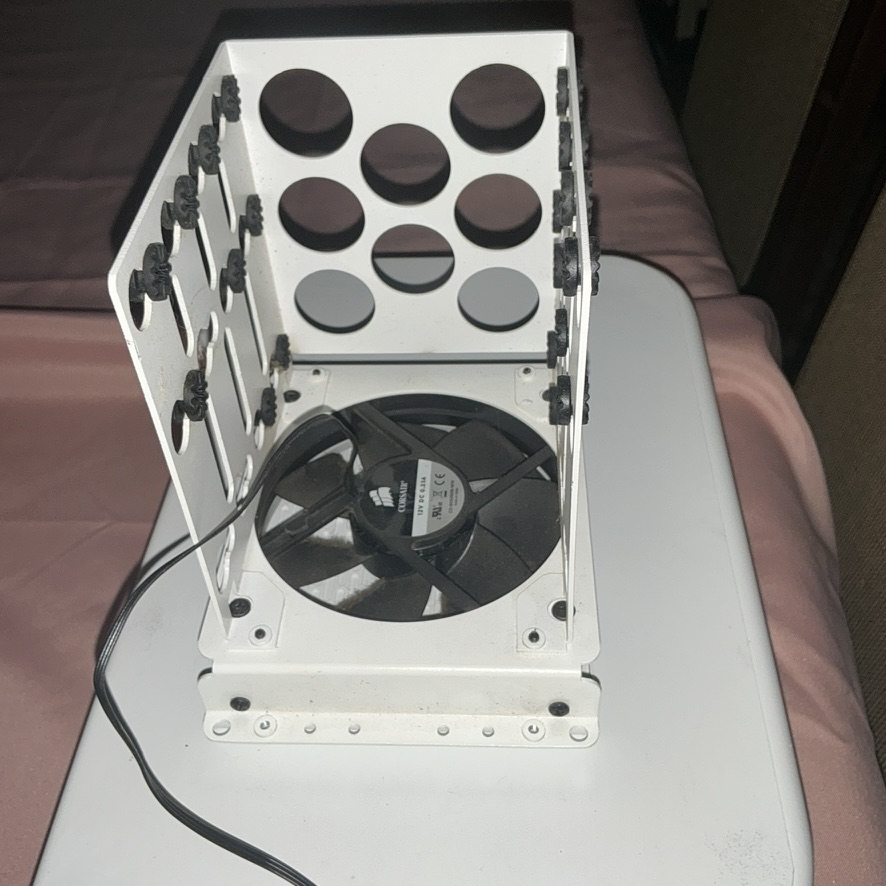

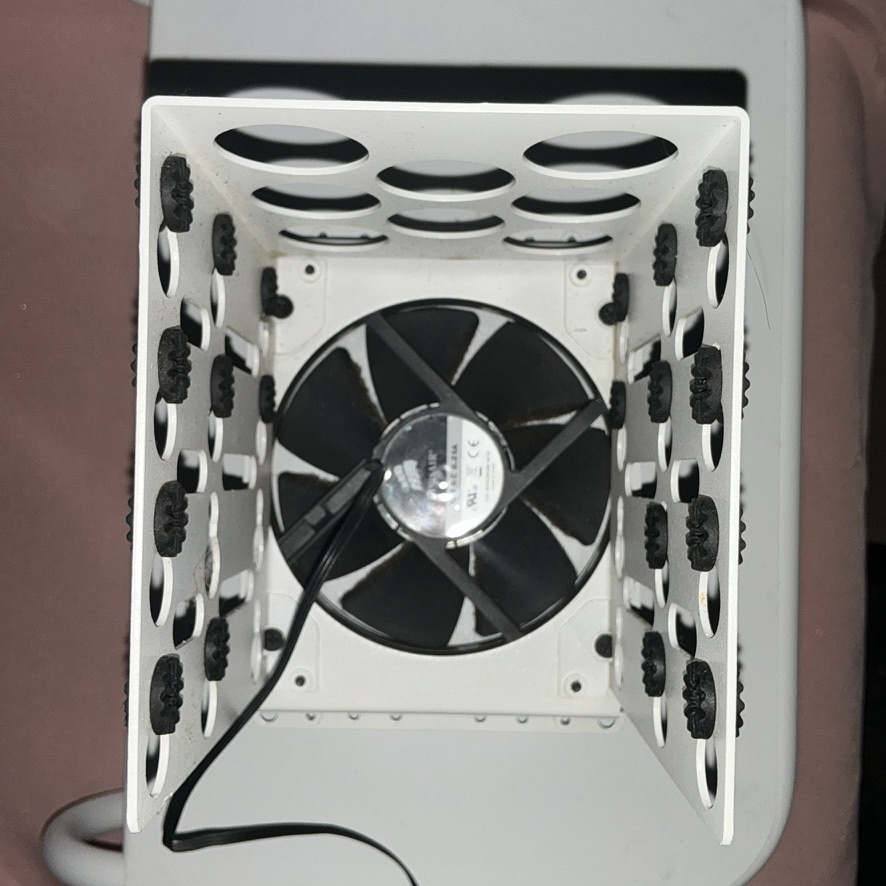

Two August 15, 2026 photographs expand the existing provisional CaseLabs accessory record rather than creating a second cage object. The images show a white powder-coated open-sided cage with four vertically stacked 3.5-inch drive positions, black vibration-isolation grommets along both side panels, a black fan mounted across the lower plate, an attached fan lead, and multiple retained fasteners. The fan label carries visible Corsair branding, consistent with the prior operator identification as a Corsair static-pressure fan, but the exact model, electrical rating, and connector are not legible enough in these frames for a definitive model assignment. The assembly remains a candidate for the front-right pedestal storage position. The photographs do not establish the exact historical CaseLabs retail name, grommet count or condition on hidden faces, loose-hardware completeness, thread integrity, fan function, installed airflow direction, drive fitment, or chassis fitment. Two stripped or thread-damaged screws were previously reported, but these frames do not isolate them clearly. Do not attempt removal until their positions, heads, and surrounding threads have been photographed closely.
Restoration relevance
Why it remains connected
physical cage and four-drive layout documented / fan model, hardware completeness, screw damage, fitment, and function pending. Disposition: undecided. The object remains associated with L’ARCHIVE / CaseLabs Mercury S8 Restoration.
Uncertainty notes
What remains unresolved
used white powder-coated cage with installed black fan and vibration grommets / dust and handling marks visible / two previously reported damaged screws require location and close documentation. physical cage and four-drive layout documented / fan model, hardware completeness, screw damage, fitment, and function pending. Terms marked unknown, provisional, pending, or unverified remain part of the record until evidence resolves them.
Relationships
Keep the object connected.
Related objects
- FI-CASE-FLEX-001 / CaseLabs solid blank Flex-Bay panel
- FI-CASE-FLOOR-001 / CaseLabs floor 120mm cutout blank
- FI-CASE-FLOOR-002 / CaseLabs 120-space blank mount / floor mount panel
- FI-CASE-PLATE-001 / CaseLabs small white accessory plate set
- FI-CASE-SSD-001 / CaseLabs SSD tray
- FI-CL-PART-001 / 8× Vibration-Isolated 3.5-inch HDD Pedestal Mount
Parent system
L’ARCHIVE / CaseLabs Mercury S8 Restoration
Documentation and restoration of L’ARCHIVE, the completed physical artwork formed by LE RÉDEMPTEURE, the boutique hardline-cooled X99 main cube, and LE SAUVEGARDER, the preservation and storage-array pedestal. The structure is authoritative; assembly and function remain unverified.
Associated dossier / FI-PROJ-001 / restoration active / function unverified
