Object Record / FI-HW-MB-Z87-001
ASUS ROG Maximus VI Impact motherboard assembly
in hand / CPU socket empty with retention frame open / no CPU or DIMMs installed / loose surface debris visible / socket pins and accessory completeness not cleared by current photographs / accessioned / model identity verified / socket inspection and bench validation pending
Narrative record
Evidence, relevance, and unresolved state.
Provenance
Custody record
Logged 2026-08-14 / quantity 1 board assembly. 2 source asset references registered.
Identification notes
What is known

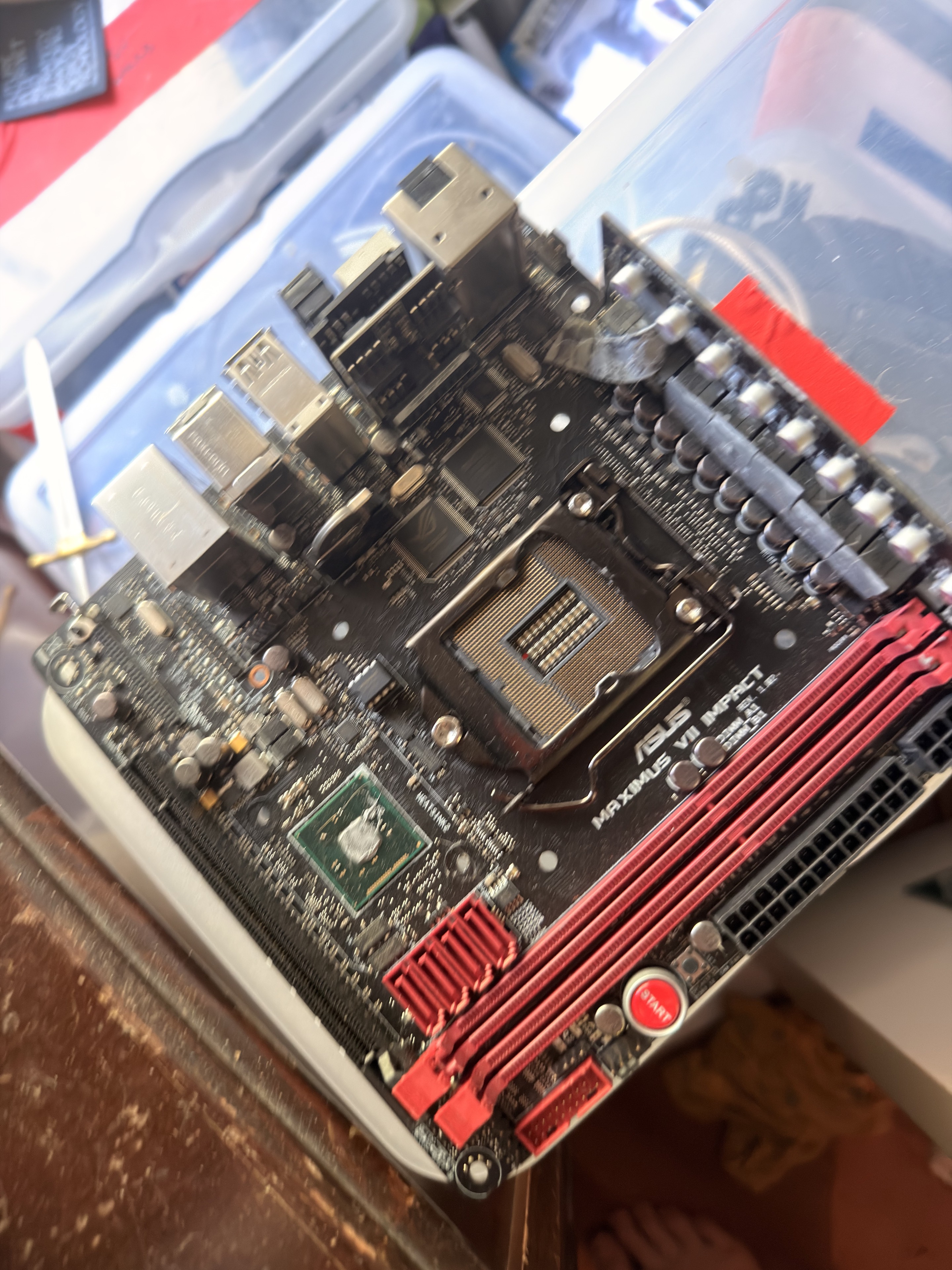

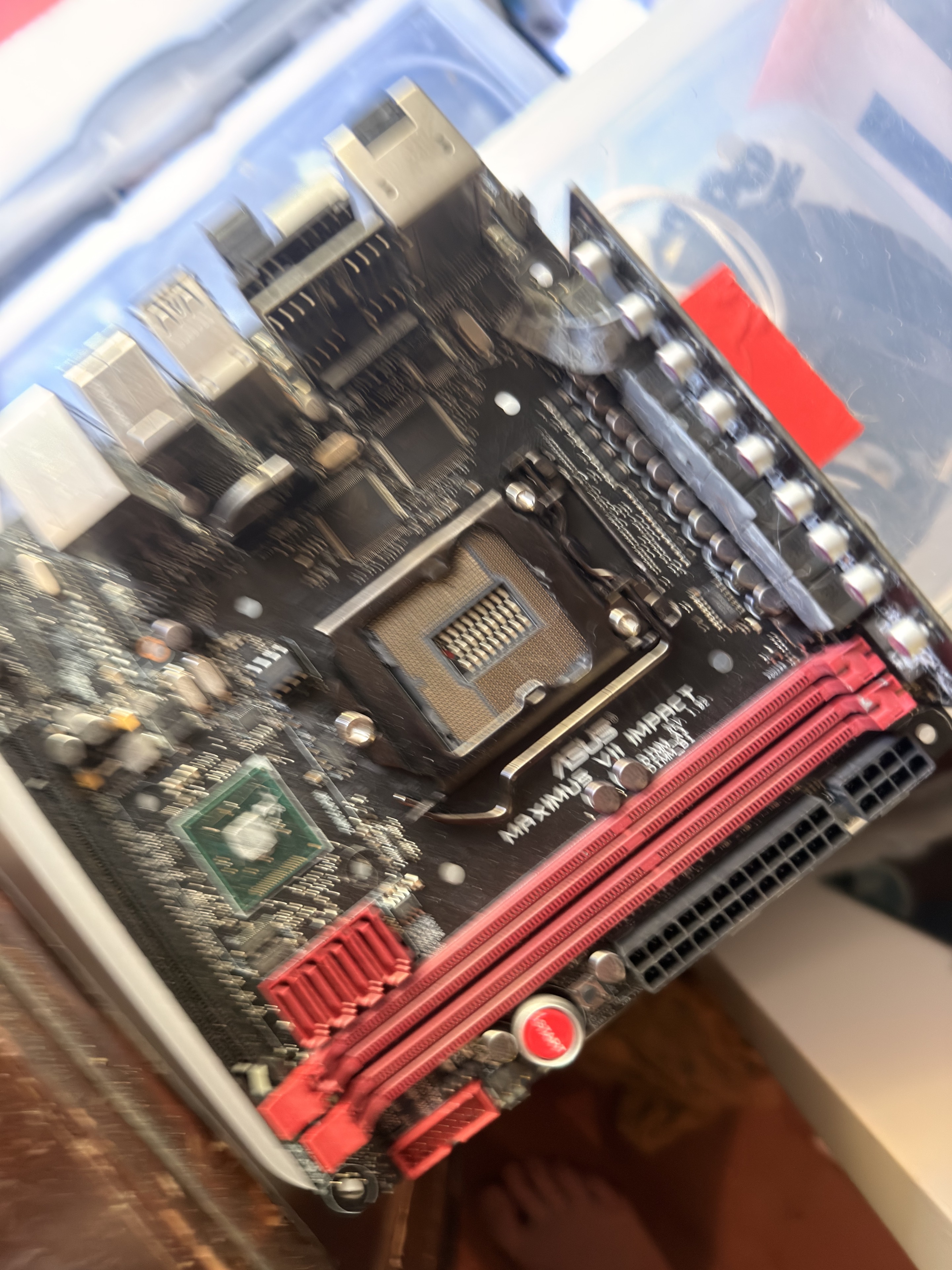

ACCESSION 003. The motherboard silkscreen directly identifies an ASUS ROG Maximus VI Impact. The photographs show a mini-ITX board with an empty LGA1150-style socket, open retention frame, two red DIMM slots, rear I/O, onboard Start control, and installed vertical daughterboard assemblies. No CPU or memory is installed. Loose fibrous or dust-like debris is visible near the upper daughterboard and power section; its nature and extent are unverified. The official ASUS specification identifies the Maximus VI Impact as an Intel Z87, LGA1150, mini-ITX motherboard with two DDR3 DIMM slots. On August 15, 2026, the operator recalled that this platform may have used an Intel Core i7-4790K but explicitly expressed uncertainty. No processor is present in the current photographs, and no processor object is assigned from that recollection alone. The current photographs do not establish the exact PCB revision, straight socket pins, complete accessory set, clean electrical condition, successful POST, BIOS state, or any functional result.
Restoration relevance
Why it remains connected
accessioned / model identity verified / socket inspection and bench validation pending. Disposition: unassigned / operator decision pending. The object remains associated with LE RÉDEMPTEURE / X99 Recovery Dossier.
Uncertainty notes
What remains unresolved
in hand / CPU socket empty with retention frame open / no CPU or DIMMs installed / loose surface debris visible / socket pins and accessory completeness not cleared by current photographs. accessioned / model identity verified / socket inspection and bench validation pending. Terms marked unknown, provisional, pending, or unverified remain part of the record until evidence resolves them.
Relationships
Keep the object connected.
Related objects
- FI-HW-MB-X99-001 / MSI X99S XPOWER AC motherboard
- FI-HW-MB-Z97-001 / ASUS ROG Maximus VII Impact motherboard assembly
- FI-HW-BLOCK-Z87-001 / EK-FB ASUS M6I monoblock for ASUS Maximus VI Impact
- FI-HW-CPU-X99-001 / Intel Core i7-5930K processor
- FI-HW-GPU-660TI-001 / EVGA GeForce GTX 660 Ti with EK-FC670 GTX full-cover water block
- FI-HW-MEM-001 / SK hynix H5AN4G8NMFR-TFC desktop DDR4 UDIMM
Parent system
LE RÉDEMPTEURE / X99 Recovery Dossier
Recovery dossier for the intended X99 compute platform of LE RÉDEMPTEURE, the boutique hardline-cooled main cube of the CaseLabs Mercury S8 artwork L’ARCHIVE. The record also preserves an ASUS ROG Maximus VI Impact with its matching EK-FB ASUS M6I monoblock, a separate Maximus VII Impact with modular audio hardware, and an operator-identified EVGA GTX 660 Ti fitted with an EK-FC670 GTX full-cover water block.
Associated dossier / FI-PROJ-009 / intake / fault isolation pending
