Object Record / FI-HW-MEM-001
SK hynix H5AN4G8NMFR-TFC desktop DDR4 UDIMM
in hand / one populated face closely photographed / white residue or foreign material and surface marks visible / reverse face, contacts, label area, and SPD contents not inspected / accessioned / package marking verified / capacity and nominal speed inferred / function unverified
Narrative record
Evidence, relevance, and unresolved state.
Provenance
Custody record
Logged 2026-08-14 / quantity 1 module. 2 source asset references registered.
Identification notes
What is known

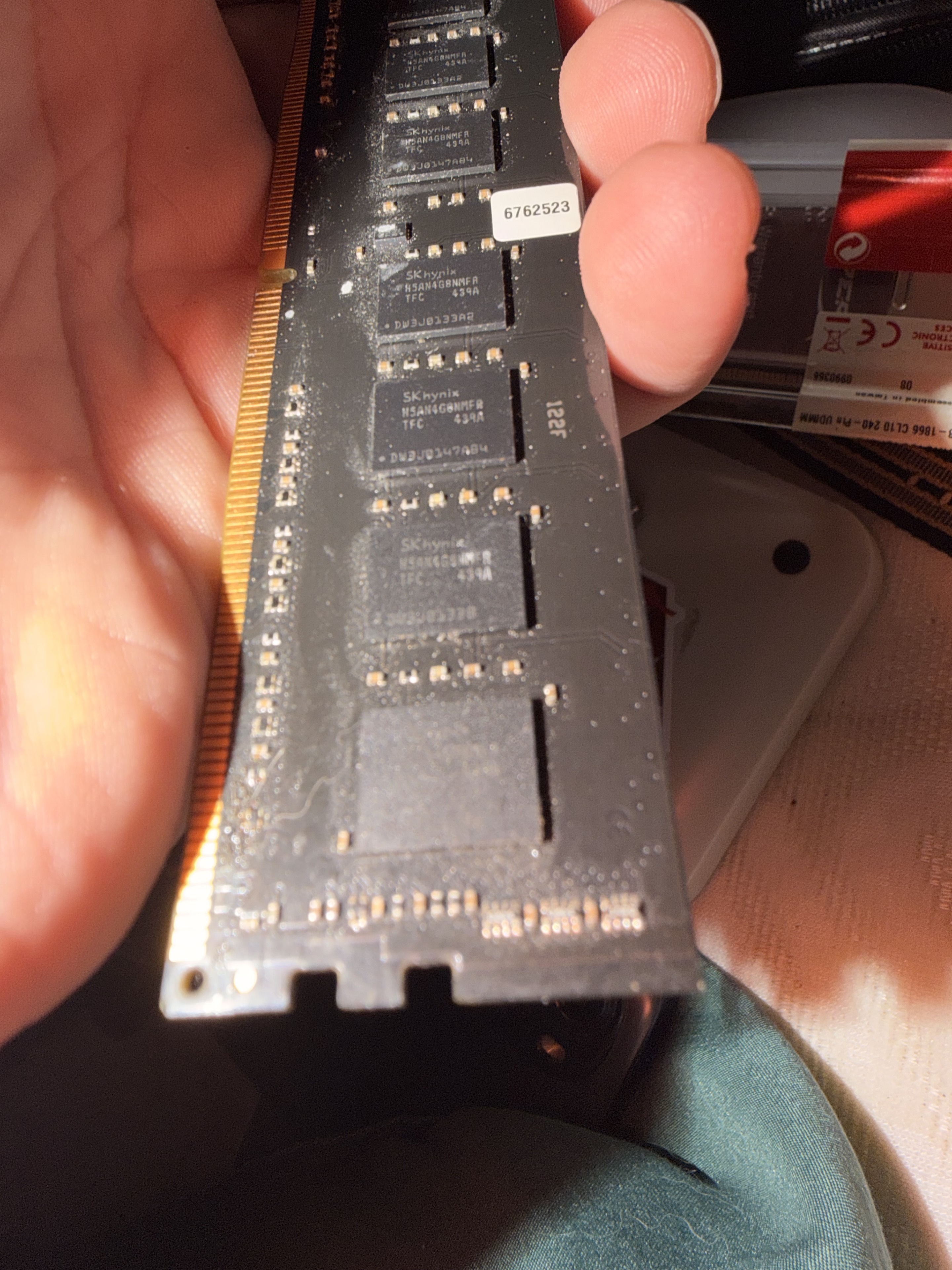

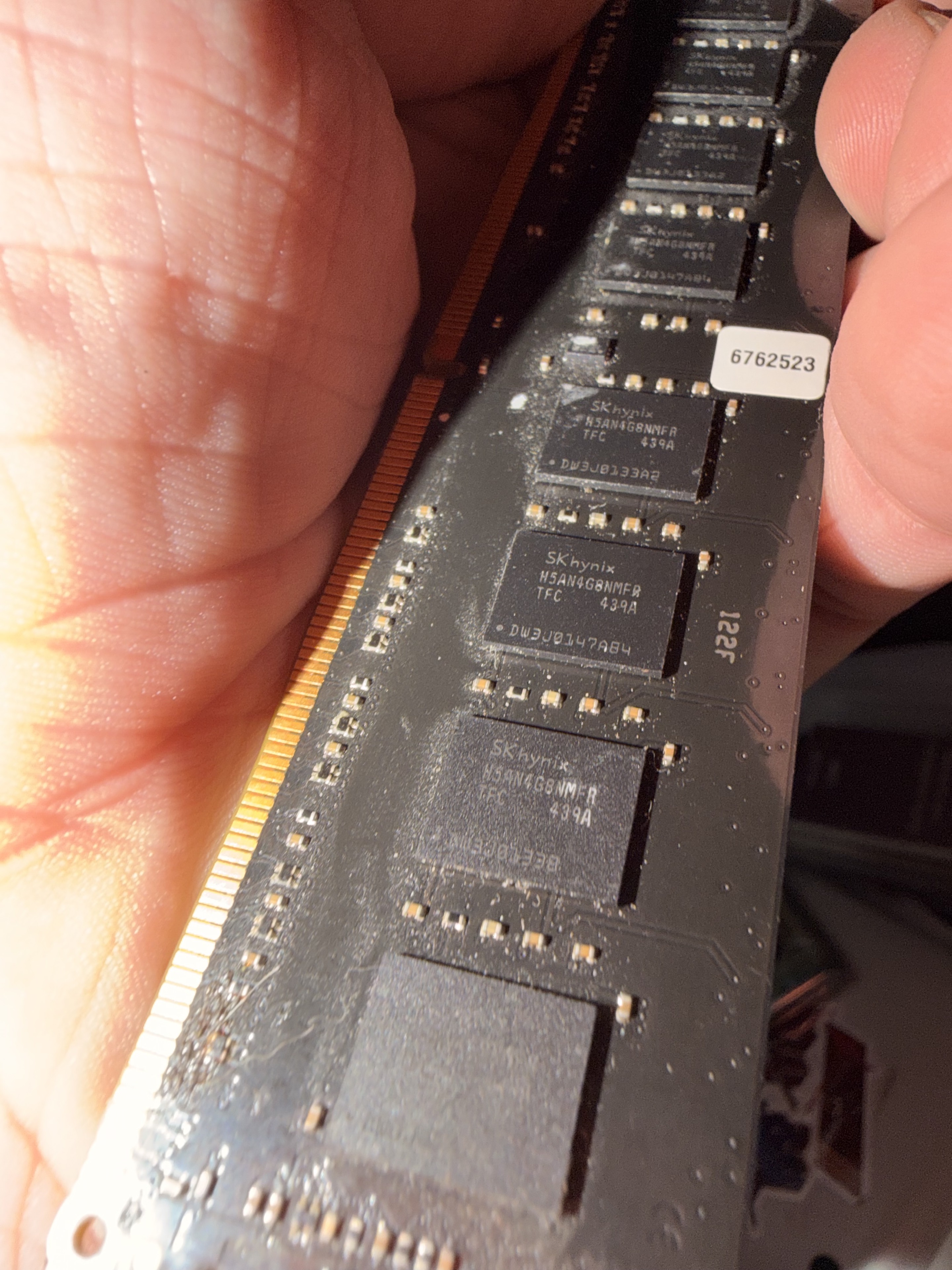

ACCESSION 005. Four supplied photographs directly establish custody of a desktop memory module with visible SK hynix DRAM package markings "H5AN4G8NMFR" and "TFC." The visible populated face appears to carry eight packages. An official ASUS X99 U-DIMM qualified-vendor list records 4 GB single-sided DDR4-2133 modules using the matching H5AN4G8NMFRTFC package identifier; the 4 GB and DDR4-2133 descriptions in this record are therefore labeled inferences rather than a final module identification. The photographs also show a small unlabeled numeric sticker, but no manufacturer module label, part number, or SPD readout. White residue or foreign material and surface marks are visible around the packages. The present evidence does not establish the reverse-side configuration, capacity, rank, timing profile, provenance, compatibility, contact condition, electrical condition, or successful memory test. It is cataloged as a candidate for controlled X99 recovery testing, not as proven compatible or operational memory.
Restoration relevance
Why it remains connected
accessioned / package marking verified / capacity and nominal speed inferred / function unverified. Disposition: archive / controlled test candidate. The object remains associated with LE RÉDEMPTEURE / X99 Recovery Dossier.
Uncertainty notes
What remains unresolved
in hand / one populated face closely photographed / white residue or foreign material and surface marks visible / reverse face, contacts, label area, and SPD contents not inspected. accessioned / package marking verified / capacity and nominal speed inferred / function unverified. Terms marked unknown, provisional, pending, or unverified remain part of the record until evidence resolves them.
Relationships
Keep the object connected.
Related objects
- FI-HW-BLOCK-Z87-001 / EK-FB ASUS M6I monoblock for ASUS Maximus VI Impact
- FI-HW-CPU-X99-001 / Intel Core i7-5930K processor
- FI-HW-GPU-660TI-001 / EVGA GeForce GTX 660 Ti with EK-FC670 GTX full-cover water block
- FI-HW-MB-X99-001 / MSI X99S XPOWER AC motherboard
- FI-HW-MB-Z87-001 / ASUS ROG Maximus VI Impact motherboard assembly
- FI-HW-MB-Z97-001 / ASUS ROG Maximus VII Impact motherboard assembly
Parent system
LE RÉDEMPTEURE / X99 Recovery Dossier
Recovery dossier for the intended X99 compute platform of LE RÉDEMPTEURE, the boutique hardline-cooled main cube of the CaseLabs Mercury S8 artwork L’ARCHIVE. The record also preserves an ASUS ROG Maximus VI Impact with its matching EK-FB ASUS M6I monoblock, a separate Maximus VII Impact with modular audio hardware, and an operator-identified EVGA GTX 660 Ti fitted with an EK-FC670 GTX full-cover water block.
Associated dossier / FI-PROJ-009 / intake / fault isolation pending
Archive routes
Source Assets / 2 references
Raw archive paths are retained for provenance and maintenance. They are not the primary object presentation.
-
assets/archive/objects/fi-hw-mem-001-skhynix-ddr4-udimm/01-module-overview.jpgOpen local asset -
assets/archive/objects/fi-hw-mem-001-skhynix-ddr4-udimm/02-package-marking.jpgOpen local asset
