Object Record / FI-RAD-001

EK-CoolStream RAD XTX (360) radiators

used three-radiator inventory group / one unit documented in close views with dust or debris, surface discoloration, and localized fin deformation / additional two units documented together with mounted fan assemblies / all units need individual inspection / manufacturer model verified / three-unit count now visually reconciled across two accession sets / individual labeling, cleaning, flush, thread inspection, and independent leak tests pending

Primary evidence

The object before the record.

FI-RAD-001 — EK-CoolStream RAD XTX (360) radiators
FI-RAD-001 / EK-CoolStream RAD XTX (360) radiators / source photograph 01
FI-RAD-001 — EK-CoolStream RAD XTX (360) radiators / source photograph 1 Photo 1 FI-RAD-001 — EK-CoolStream RAD XTX (360) radiators / source photograph 2 Photo 2 FI-RAD-001 — EK-CoolStream RAD XTX (360) radiators / source photograph 3 Photo 3 FI-RAD-001 — EK-CoolStream RAD XTX (360) radiators / source photograph 4 Photo 4 FI-RAD-001 — EK-CoolStream RAD XTX (360) radiators / source photograph 5 Photo 5 FI-RAD-001 — EK-CoolStream RAD XTX (360) radiators / source photograph 6 Photo 6 FI-RAD-001 — EK-CoolStream RAD XTX (360) radiators / source photograph 7 Photo 7 FI-RAD-001 — EK-CoolStream RAD XTX (360) radiators / source photograph 8 Photo 8 FI-RAD-001 — EK-CoolStream RAD XTX (360) radiators / source photograph 9 Photo 9 FI-RAD-001 — EK-CoolStream RAD XTX (360) radiators / source photograph 10 Photo 10 FI-RAD-001 — EK-CoolStream RAD XTX (360) radiators / source photograph 11 Photo 11 FI-RAD-001 — EK-CoolStream RAD XTX (360) radiators / source photograph 12 Photo 12 FI-RAD-001 — EK-CoolStream RAD XTX (360) radiators / source photograph 13 Photo 13 FI-RAD-001 — EK-CoolStream RAD XTX (360) radiators / source photograph 14 Photo 14 FI-RAD-001 — EK-CoolStream RAD XTX (360) radiators / source photograph 15 Photo 15 FI-RAD-001 — EK-CoolStream RAD XTX (360) radiators / source photograph 16 Photo 16 FI-RAD-001 — EK-CoolStream RAD XTX (360) radiators / source photograph 17 Photo 17 FI-RAD-001 — EK-CoolStream RAD XTX (360) radiators / source photograph 18 Photo 18 FI-RAD-001 — EK-CoolStream RAD XTX (360) radiators / source photograph 19 Photo 19 FI-RAD-001 — EK-CoolStream RAD XTX (360) radiators / source photograph 20 Photo 20 FI-RAD-001 — EK-CoolStream RAD XTX (360) radiators / source photograph 21 Photo 21 FI-RAD-001 — EK-CoolStream RAD XTX (360) radiators / source photograph 22 Photo 22 FI-RAD-001 — EK-CoolStream RAD XTX (360) radiators / source photograph 23 Photo 23 FI-RAD-001 — EK-CoolStream RAD XTX (360) radiators / source photograph 24 Photo 24 FI-RAD-001 — EK-CoolStream RAD XTX (360) radiators / source photograph 25 Photo 25 FI-RAD-001 — EK-CoolStream RAD XTX (360) radiators / source photograph 26 Photo 26 FI-RAD-001 — EK-CoolStream RAD XTX (360) radiators / source photograph 27 Photo 27 FI-RAD-001 — EK-CoolStream RAD XTX (360) radiators / source photograph 28 Photo 28

Catalog state / radiator

Metadata supports the object.

Identity
FI-RAD-001 / EK Water Blocks / EK-CoolStream RAD XTX (360) / EAN 3831109860229
Condition
used three-radiator inventory group / one unit documented in close views with dust or debris, surface discoloration, and localized fin deformation / additional two units documented together with mounted fan assemblies / all units need individual inspection
Status
manufacturer model verified / three-unit count now visually reconciled across two accession sets / individual labeling, cleaning, flush, thread inspection, and independent leak tests pending
Disposition
keep pending test
Build relevance
restoration active / function unverified / CaseLabs Archive

Narrative record

Evidence, relevance, and unresolved state.

Provenance

Custody record

Logged 2026-06-05 / quantity 3. 28 source asset references registered.

Identification notes

What is known

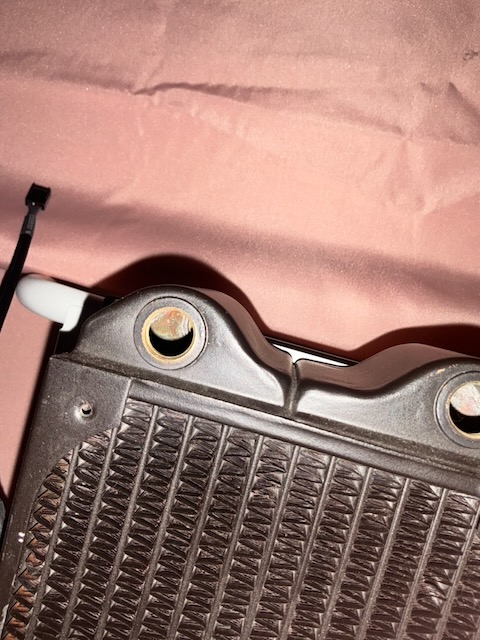

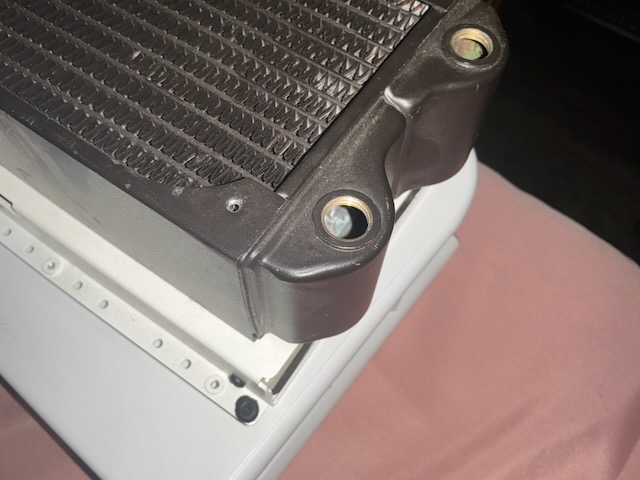

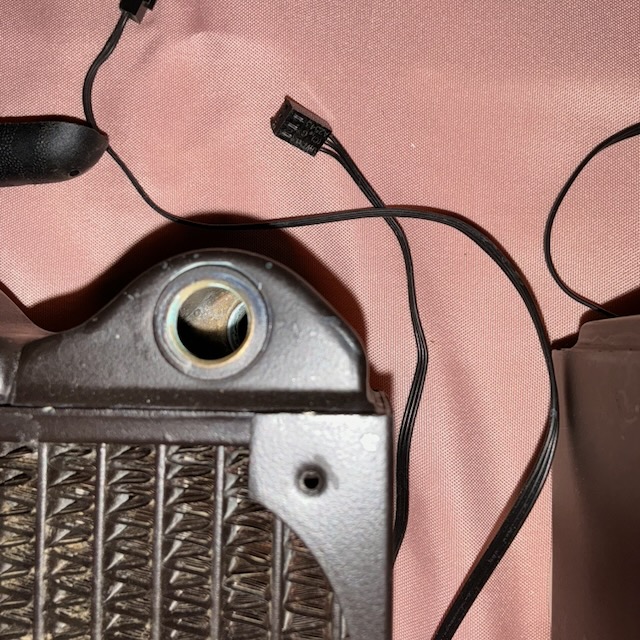

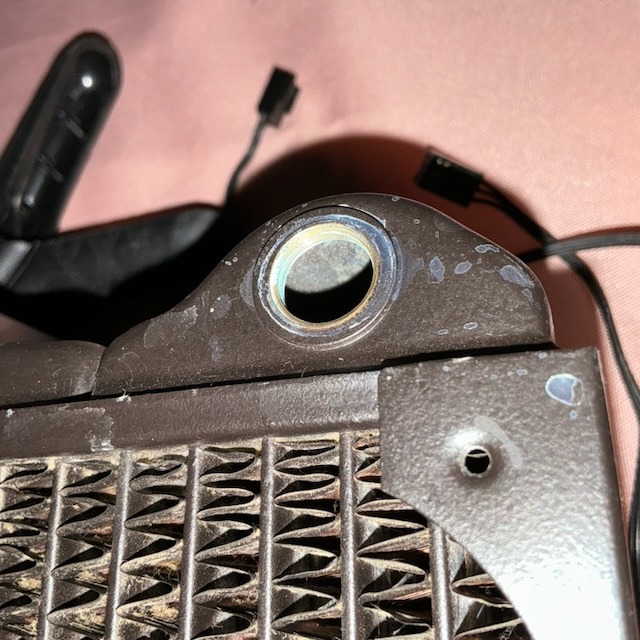

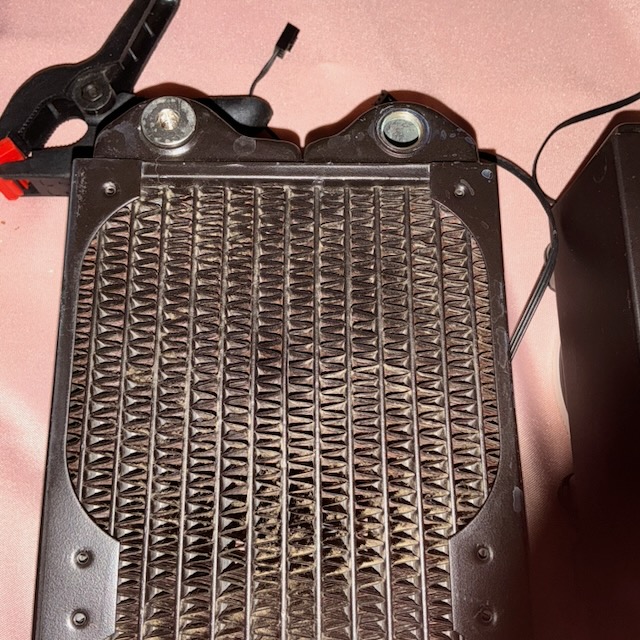

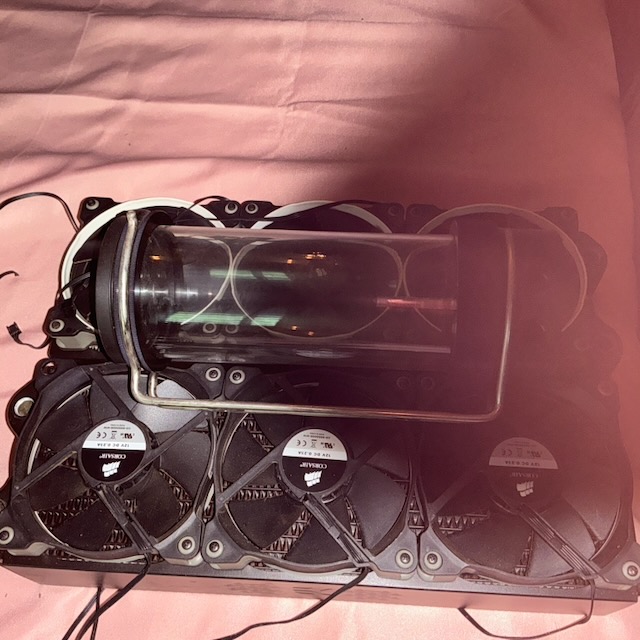

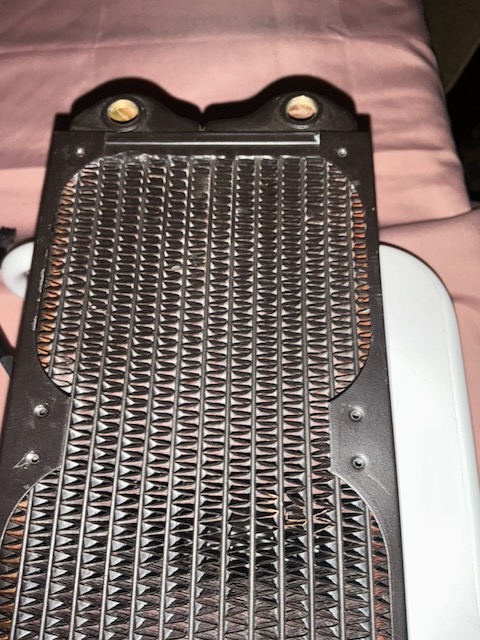

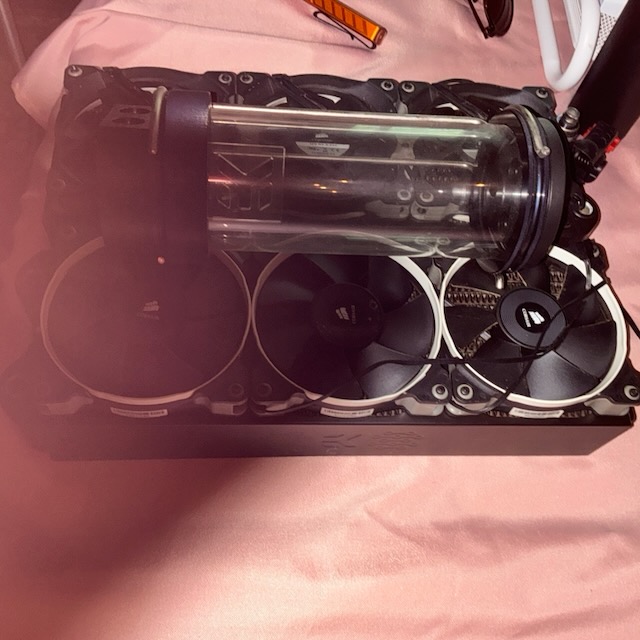

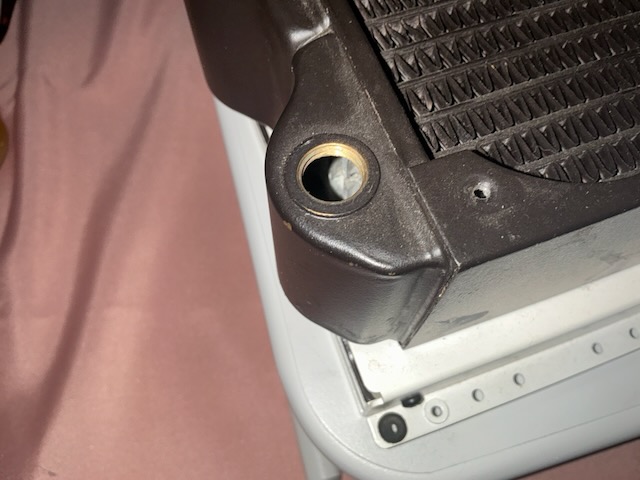

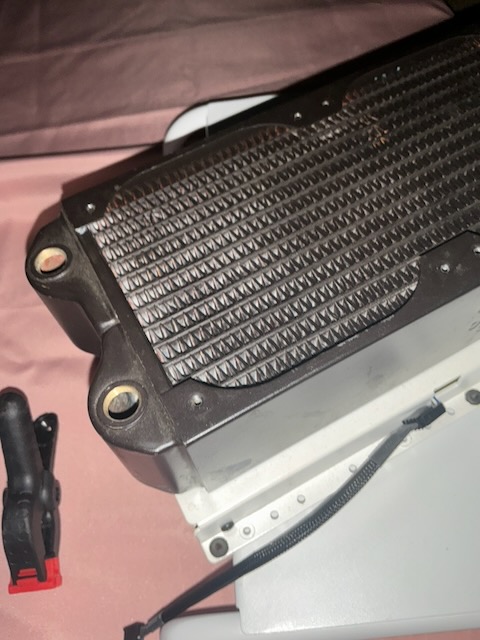

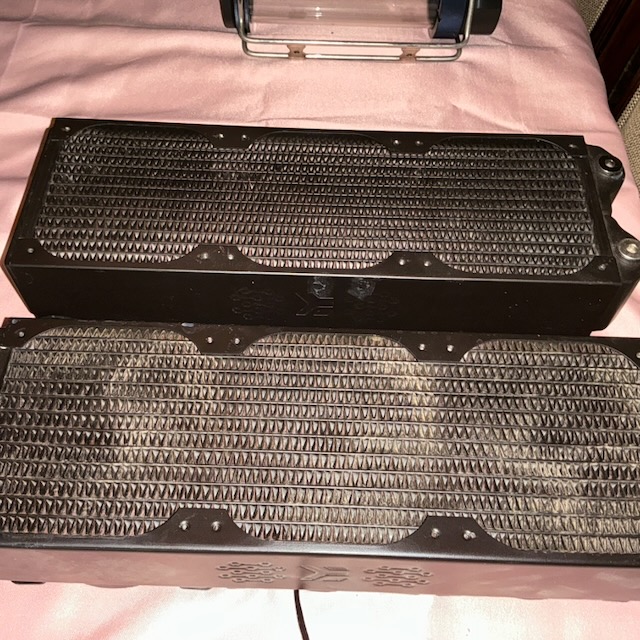

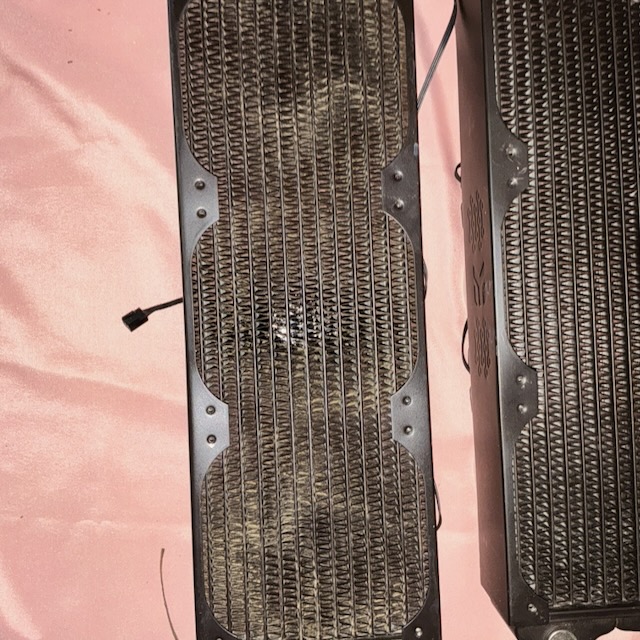

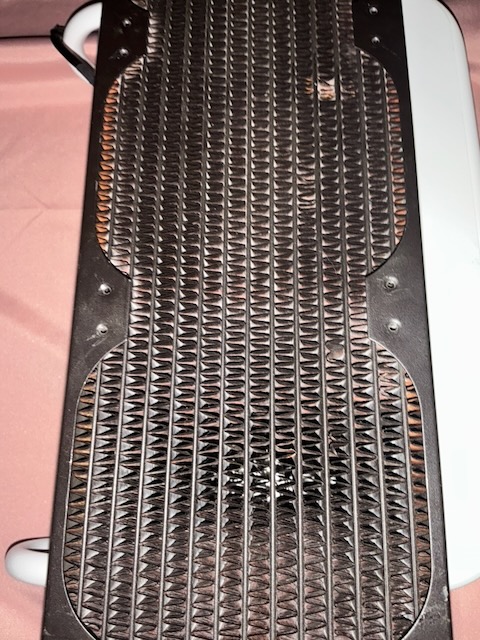

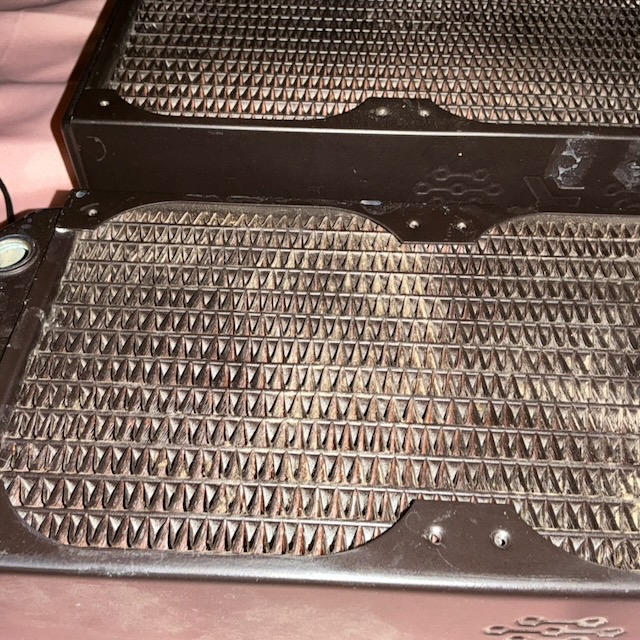

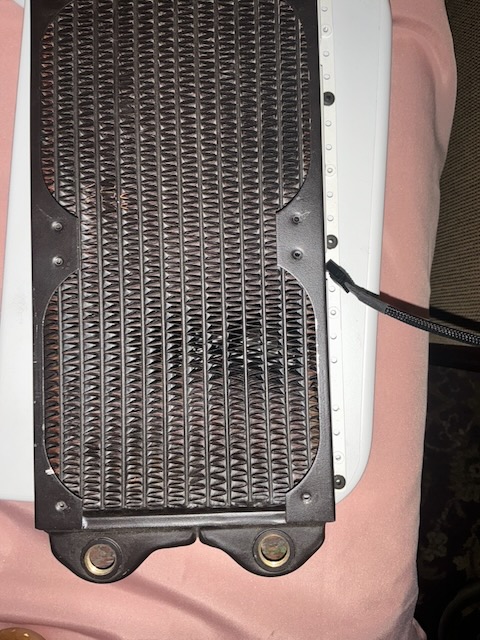

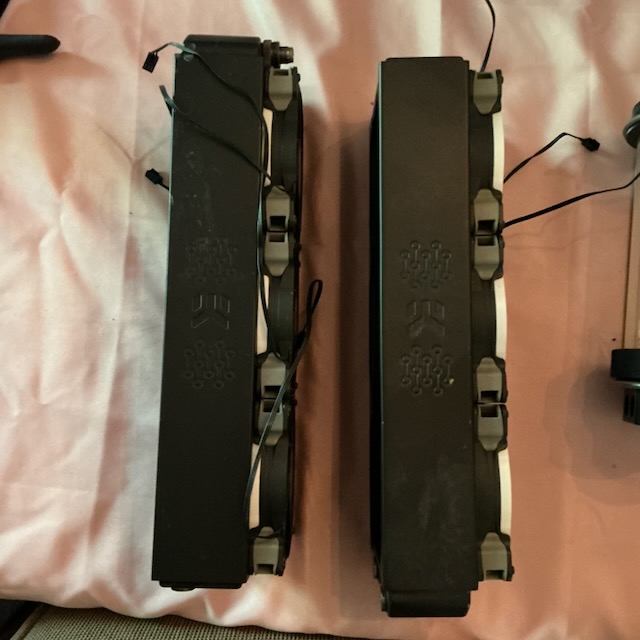

Heavy cooling overhead from the original watercooling plan. First photo mapping shows used EK radiators with visible fin dust/debris and fan assemblies. The August 15, 2026 evidence-expansion set documents one individual radiator from the three-unit inventory group. Four supplied photographs show the thick black radiator body, three 120 mm fan sections, two ports at one end, dust or debris across the fin field, surface discoloration, and several localized bent or compressed fins. A second accession frame supplied the same day shows the operator-identified two remaining XTX 360 radiators side-by-side, each with a three-fan assembly mounted. That frame reconciles the prior three-unit count at group level: one radiator in the close-view set plus two additional radiators in the paired overview. It does not establish fan manufacturer or model, hidden fin condition, port configuration, or which physical radiator corresponds to any earlier photograph. The white support beneath the first radiator, nearby loose ties and leads, bed covering, and objects at the margins are photographic context only. None of the radiators has a photographed serial number or permanent sub-identifier, and the images do not establish internal cleanliness, thread condition, prior coolant chemistry, flow, or leak integrity. EK's manufacturer product page identifies the XTX 360 as a 400 x 130 x 64 mm, 11-FPI radiator with copper fins, copper tubing, brass chambers, steel housing, three 120 mm fan positions, G1/4 ports on both sides, and a separate bleed/fill/drain port. Retain the three-unit group count as visually reconciled but provisional at the individual-unit level. Separate and label RAD-001-A, RAD-001-B, and RAD-001-C during physical inspection; photograph each radiator and fan labels independently. Each unit needs exterior cleaning, careful fin inspection, thread inspection, flush, and an independent pressure or leak test before loop service.
