Object Record / FI-CASE-FLEX-002
CaseLabs Mercury S8 360 mm front Flex-Bay radiator mount / vent
used white powder-coated perforated assembly / visible dust, handling marks, and possible edge wear / hardware completeness and fitment not yet checked / operator-identified as S8 front 360 mm Flex-Bay hardware / exact CaseLabs catalog name, component completeness, and fitment verification pending
Primary evidence
The object before the record.
Narrative record
Evidence, relevance, and unresolved state.
Provenance
Custody record
Logged 2026-06-12 / quantity 1. 5 source asset references registered.
Identification notes
What is known

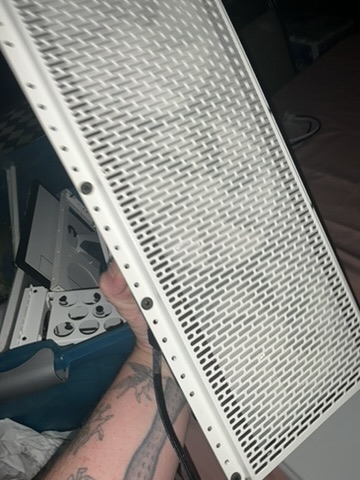

Human-confirmed from L'Archive Contact Sheet 2 final transition and Contact Sheet 3 first image. The operator's August 15, 2026 accession identifies this retained white perforated assembly as the 360 mm front Flex-Bay hardware for the CaseLabs Mercury S8. The new photograph shows a long perforated face, white powder-coated side flanges, repeated fastener holes along the edges, and one attached or adjacent black lead. The frame does not show a radiator, fans, loose fasteners, rear mounting geometry, CaseLabs label, or an installed chassis relationship. The preserved Mercury S8 reference manual identifies a nine-position 5.25-inch Flex-Bay column in the left/front chassis section and a 360 mm maximum radiator size, which is consistent with the operator identification but does not establish the original retail accessory name. Treat "front 360 mm Flex-Bay radiator mount / vent" as the controlled provisional name until rear views, measurements, hardware count, and direct fitment in the S8 are documented. Do not merge it with FI-CL-PART-004, the separate dual-120 chassis front plate.
Restoration relevance
Why it remains connected
operator-identified as S8 front 360 mm Flex-Bay hardware / exact CaseLabs catalog name, component completeness, and fitment verification pending. Disposition: archive. The object remains associated with L’ARCHIVE / CaseLabs Mercury S8 Restoration.
Uncertainty notes
What remains unresolved
used white powder-coated perforated assembly / visible dust, handling marks, and possible edge wear / hardware completeness and fitment not yet checked. operator-identified as S8 front 360 mm Flex-Bay hardware / exact CaseLabs catalog name, component completeness, and fitment verification pending. Terms marked unknown, provisional, pending, or unverified remain part of the record until evidence resolves them.
Relationships
Keep the object connected.
Related objects
- FI-CL-PART-011 / STH10 Magnum-class 480 mm drop-in radiator mount
- FI-BLOCK-MOSFET-001 / EK-MOSFET MSI X99 XPower - Nickel MOSFET water block
- FI-CASE-001 / CaseLabs Mercury S8
- FI-CASE-FILTER-001 / CaseLabs white mesh/filter insert group
- FI-CASE-FLEX-001 / CaseLabs solid blank Flex-Bay panel
- FI-CASE-FLOOR-001 / CaseLabs floor 120mm cutout blank
Parent system
L’ARCHIVE / CaseLabs Mercury S8 Restoration
Documentation and restoration of L’ARCHIVE, the completed physical artwork formed by LE RÉDEMPTEURE, the boutique hardline-cooled X99 main cube, and LE SAUVEGARDER, the preservation and storage-array pedestal. The structure is authoritative; assembly and function remain unverified.
Associated dossier / FI-PROJ-001 / restoration active / function unverified
Field logs / dossiers
Archive routes
Source Assets / 5 references
Raw archive paths are retained for provenance and maintenance. They are not the primary object presentation.
-
