STH10 Magnum-class 480 mm drop-in radiator mount
used white powder-coated mount photographed with radiator and fans installed / exposed condition, fastener completeness, and rail fitment not fully visible / new accession / operator-identified STH10 Magnum-class 480 mm drop-in mount / exact catalog name, revision, completeness, and chassis fitment pending
Narrative record
Evidence, relevance, and unresolved state.
Provenance
Custody record
Logged 2026-08-15 / quantity 1. 2 source asset references registered.
Identification notes
What is known

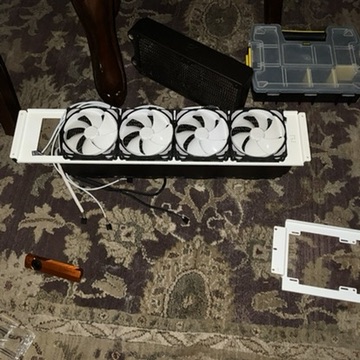

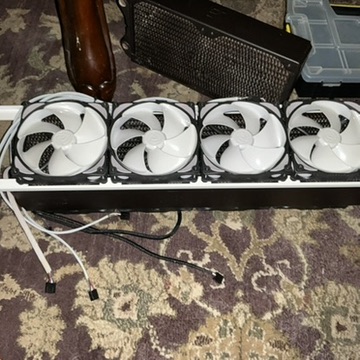

The operator identifies the retained white frame surrounding FI-RAD-003 as an STH10 Magnum-class 480 mm drop-in radiator mount. Two August 15, 2026 photographs show portions of the white powder-coated frame around the radiator and fan assembly, including extended end sections and mounting geometry. The mount is not photographed separately, from below, or in an installed chassis, so the exact historical CaseLabs retail name, revision, full dimensions, rail relationship, fastener count, thread condition, and STH10 fitment are not independently established. A separate loose white rectangular frame or plate visible beside the assembly is photographic context and is not assigned to this object by these frames. Preserve the operator identification as the controlled provisional name until the radiator and fans can be removed or lifted for complete mount photography, measurement, hardware inventory, and dry-fit confirmation in the intended CaseLabs chassis.
Restoration relevance
Why it remains connected
new accession / operator-identified STH10 Magnum-class 480 mm drop-in mount / exact catalog name, revision, completeness, and chassis fitment pending. Disposition: archive / fitment pending. The object remains associated with L’ARCHIVE / CaseLabs Mercury S8 Restoration.
Uncertainty notes
What remains unresolved
used white powder-coated mount photographed with radiator and fans installed / exposed condition, fastener completeness, and rail fitment not fully visible. new accession / operator-identified STH10 Magnum-class 480 mm drop-in mount / exact catalog name, revision, completeness, and chassis fitment pending. Terms marked unknown, provisional, pending, or unverified remain part of the record until evidence resolves them.
